Technics SB-X500 10″ Woofer Honey Comb Disc Aluminum Diaphragm Vintage 3 way speaker

Technics SB-X500 – Vintage Japanese Honeycomb Flat-Diaphragm Loudspeakers

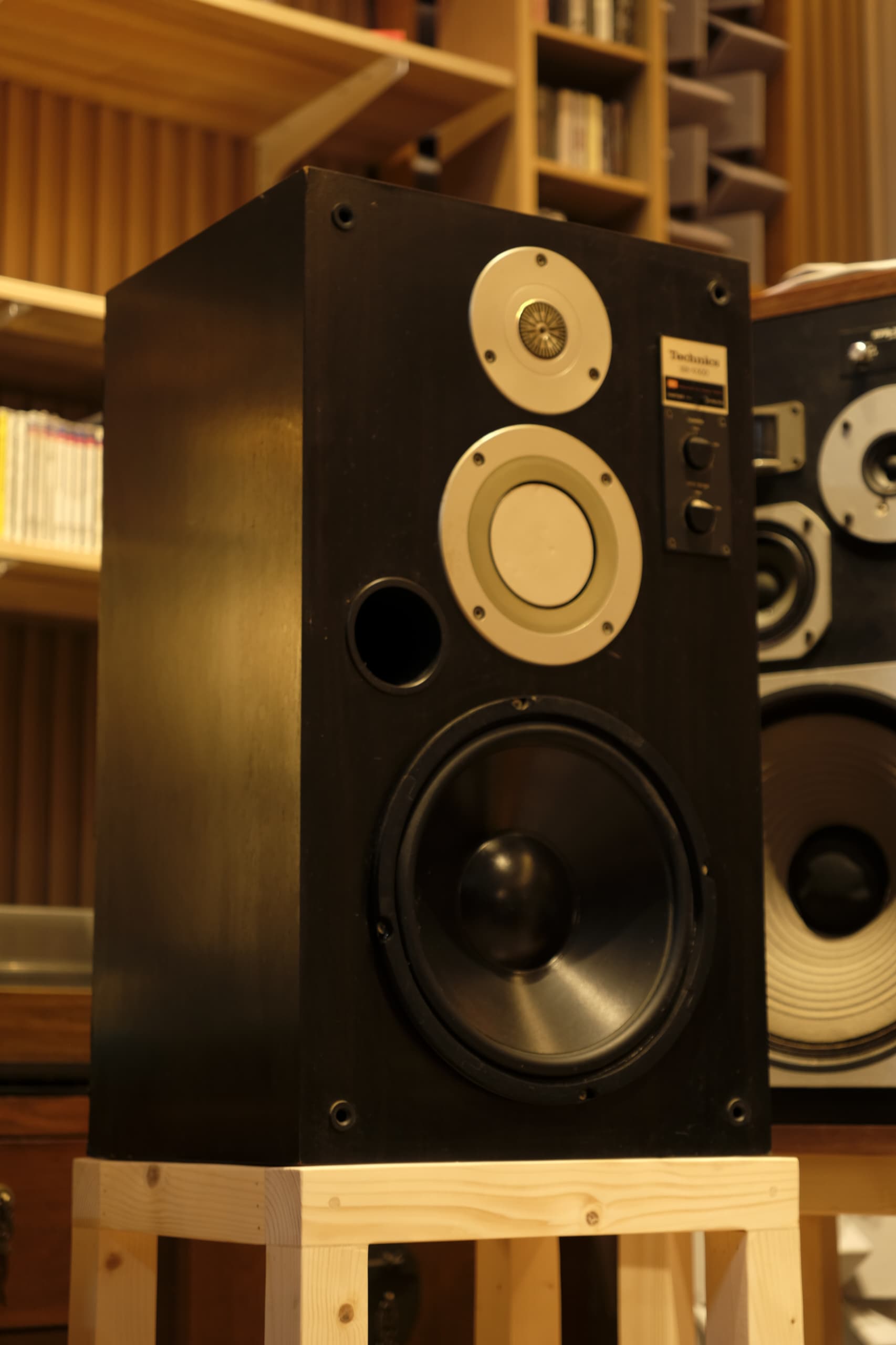

The Technics SB-X500 is a distinctive Japanese-made vintage Hi-Fi loudspeaker introduced in 1983, showcasing Technics’ innovative honeycomb flat-diaphragm driver technology. Unlike conventional cone-type speakers, the SB-X500 features an advanced 3-way, 3-driver bass-reflex design, incorporating a 250mm (10-inch) woofer, an 80mm (3.1-inch) flat-disc midrange driver, and a 28mm flat-disc tweeter. This unusual construction was developed to combine high diaphragm rigidity with low moving mass, helping reduce unwanted cone breakup and distortion while improving transient response. Its published specifications include a frequency response of 33Hz–33kHz, 90dB sensitivity, 8-ohm nominal impedance, 65 watts DIN power handling and 130 watts music power handling. The crossover frequencies are 1,500Hz and 4,000Hz, while each substantial cabinet measures 350 × 606 × 327mm and weighs approximately 14kg. With its striking flat-driver appearance and classic woodgrain cabinet, the SB-X500 remains an interesting example of Technics’ ambitious loudspeaker engineering during the early 1980s.

What makes the Technics SB-X500 particularly fascinating is its honeycomb disc technology, developed to address some of the limitations associated with traditional cone diaphragms. The flat, rigid honeycomb structure is intended to behave more like a controlled piston across its operating range, reducing unwanted flexing and helping maintain accurate musical reproduction. When properly maintained and partnered with a suitable amplifier, the SB-X500 can offer a lively, engaging presentation, with substantial bass presence from its 10-inch woofer, expressive midrange reproduction, and detailed upper frequencies. Its design makes it especially interesting for vocal jazz, acoustic instruments, classic rock, orchestral recordings, and vinyl playback, where tonal separation, rhythmic expression, and musical dynamics are important. The three-way configuration allows the individual drivers to concentrate on their respective frequency ranges, contributing to a potentially spacious and well-defined stereo presentation.

Beyond its sonic capabilities, the Technics SB-X500 represents a fascinating period of Japanese Hi-Fi innovation, when manufacturers invested heavily in unconventional materials, advanced driver construction, and distinctive loudspeaker designs. Its flat honeycomb drivers give the speakers an unmistakable appearance that stands apart from conventional vintage loudspeakers, making them particularly attractive to collectors and enthusiasts seeking something different. With a relatively amplifier-friendly 8-ohm nominal impedance and 90dB sensitivity, the SB-X500 can be paired with many quality vintage integrated amplifiers and stereo receivers from brands such as Technics, Sansui, Yamaha, Luxman, and NAD. Proper speaker positioning, suitable stands, and adequate breathing room from surrounding walls can help improve bass control, imaging, and overall tonal balance. For collectors who appreciate unusual engineering, classic Japanese craftsmanship, and the pleasure of rediscovering vintage audio, the Technics SB-X500 is a compelling loudspeaker that deserves to be experienced and appreciated.
