Yamaha R-N600A high-fidelity stereo network receiver 80 watts Spotify Tidal Airplay Wifi LAN Network Streamer
RM2,790.00
The Yamaha R-N600A is a stereo network receiver combining a traditional Class AB amplifier with modern hi-res streaming capabilities.
Power & Audio Performance
- Rated Output Power: 80W + 80W at 8 ohms (20 Hz–20 kHz, 0.07% THD)
- Dynamic Power: 105W to 175W per channel (8 to 2 ohms)
- Frequency Response: 10 Hz–100 kHz (±1 dB)
- Signal-to-Noise Ratio: 100 dB (CD input)
- Design Topology: ToP-ART (Total Purity Audio Reproduction Technology) with symmetrical circuit layout [1, 4, 5]

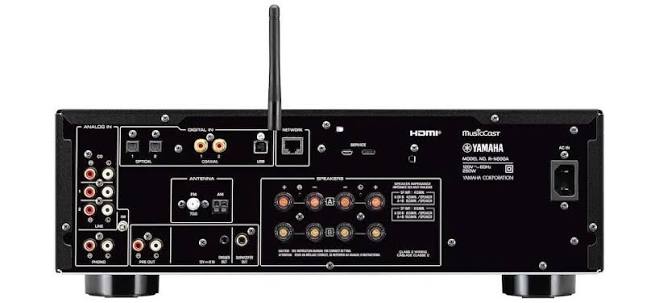

Inputs & Outputs
- Analog Inputs: 4x RCA line-level (including CD), 1x Moving Magnet (MM) Phono input [6]
- Digital Inputs: 2x Optical, 2x Coaxial [1]
- USB & Network: 1x USB Type-A (for USB storage playback/charging), 1x Ethernet (RJ-45) [7, 8]
- Outputs: Speaker A/B terminals, 1x Subwoofer pre-out, 2x Analog line-outs (for recording), 1x Headphone jack[6, 7]
Network & Connectivity
- Wireless: Wi-Fi (2.4 / 5 GHz), Bluetooth 4.2 (SBC/AAC)
- Streaming Protocols: AirPlay 2, MusicCast, Internet Radio
- Supported Audio Formats: MP3, WMA, AAC, WAV, FLAC, AIFF, DSD [1, 7]
Physical Specifications
- Dimensions (W x H x D): 435 x 151 x 392 mm (17-1/8″ x 6″ x 15-3/8″)
- Weight: 9.8 kg (21.6 lbs)
- Standby Power Consumption: 0.2W [1, 9]
