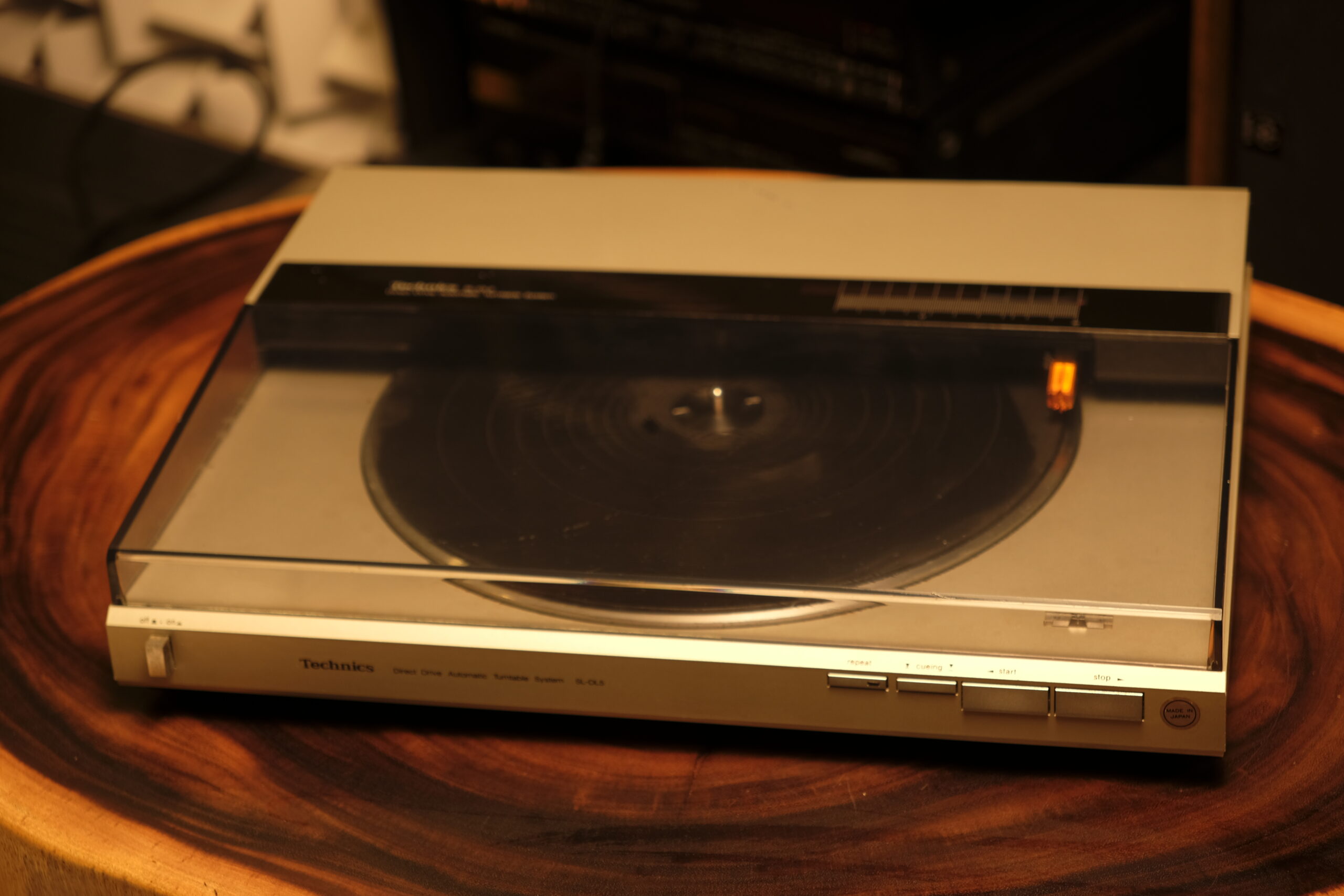

Vintage Technics SL-DL5 Fully Automatic Linear Tracking Direct Drive Turntable 240v with TP24 stylus
RM1,690.00
The Technics SL-DL5 is a fully automatic linear-tracking direct-drive turntable introduced around 1982–1983. It was part of Technics’ highly regarded slim-profile linear tracker range, positioned above many entry-level belt-drive decks. Despite its compact appearance, it incorporates much of the engineering that made Technics famous for speed accuracy and reliability.
Detailed Specifications
- Drive System: Quartz-servo direct drive

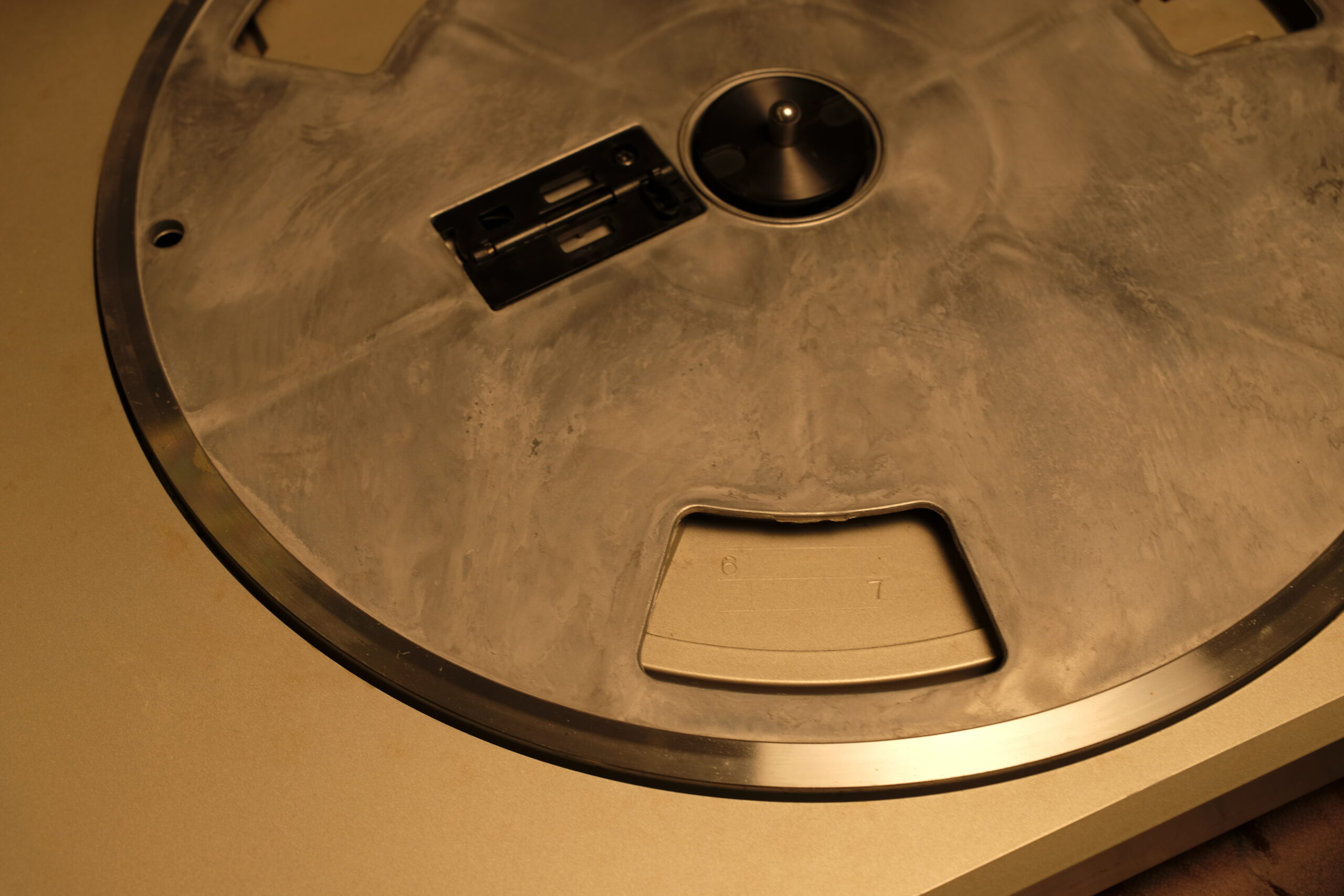

- Motor: Coreless brushless DC motor with integrated platter rotor
- Speed: 33⅓ and 45 RPM
- Speed Accuracy: Quartz locked
- Wow & Flutter: ≤0.025% WRMS
- Rumble: Approximately –78 dB (DIN B)

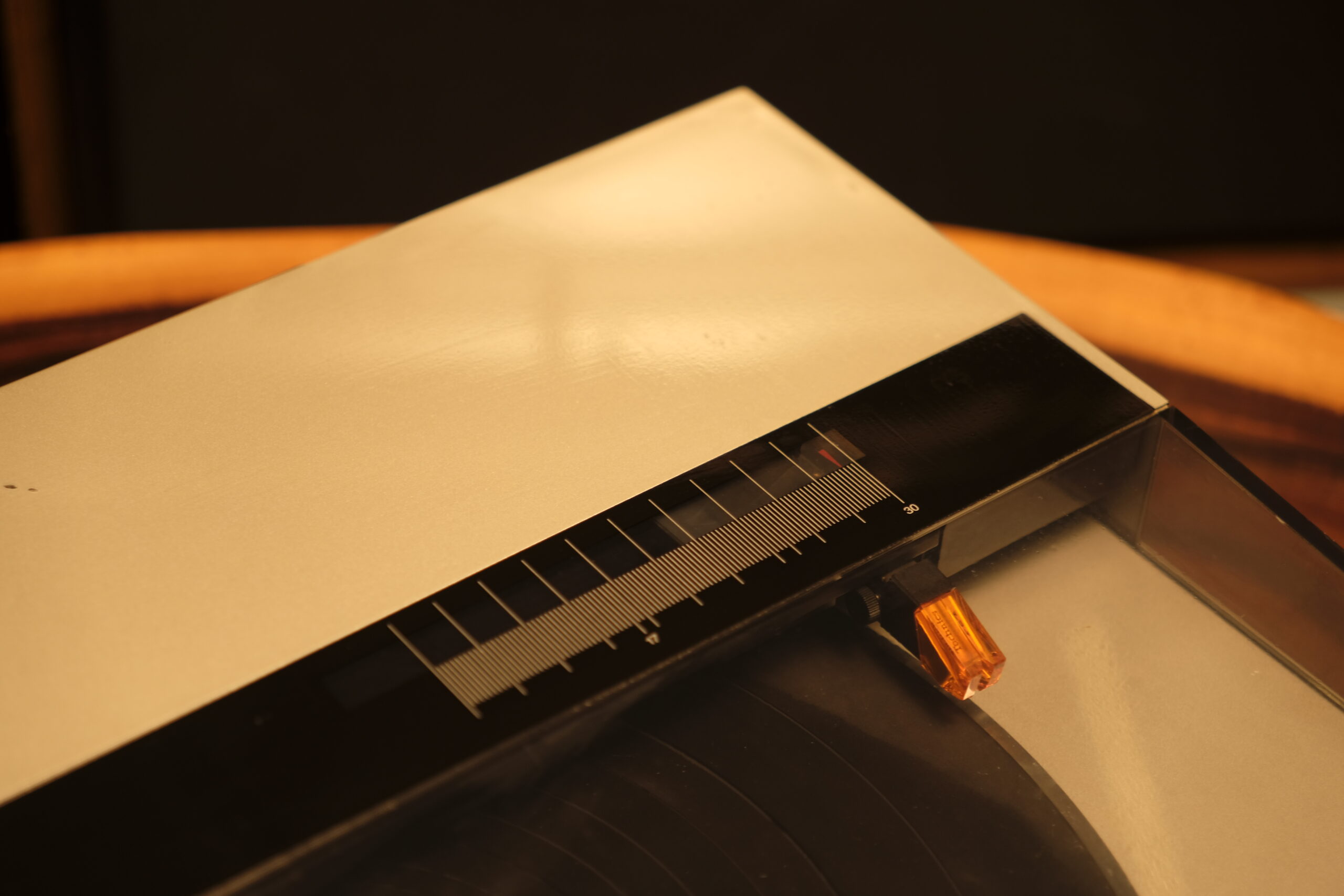

- Tonearm: Dynamic balance linear-tracking arm
- Tracking Error: Nearly zero (tangential tracking)
- Operation: Fully automatic
- Record Sizes: Automatic 7″, 10″, and 12″ detection
- Cartridge Type: T4P (P-mount)
- Recommended Tracking Force: 1.25 g (preset for P-mount cartridges)
- Cabinet: Die-cast aluminum top with TNRC (Technics Non-Resonant Compound) base
- Dimensions: 430 × 325 × 90 mm
- Weight: Approximately 5 kg
- Power Consumption: About 10 W.
Why it sounds so good
The SL-DL5 benefits from linear tracking, where the stylus remains tangent to the groove exactly as it was during record cutting. Conventional pivoted tonearms always have some tracking-angle error, but the DL5 virtually eliminates it.
This results in:
- Cleaner inner grooves
- Lower distortion
- Better channel balance
- Reduced record and stylus wear
- More stable stereo imaging
The quartz-locked direct-drive motor is another major strength. Speed remains exceptionally stable regardless of stylus drag, giving sustained piano notes, vocals, and acoustic instruments a natural, unwavering pitch. Bass also sounds tighter and more rhythmic than on many budget belt-drive decks.
