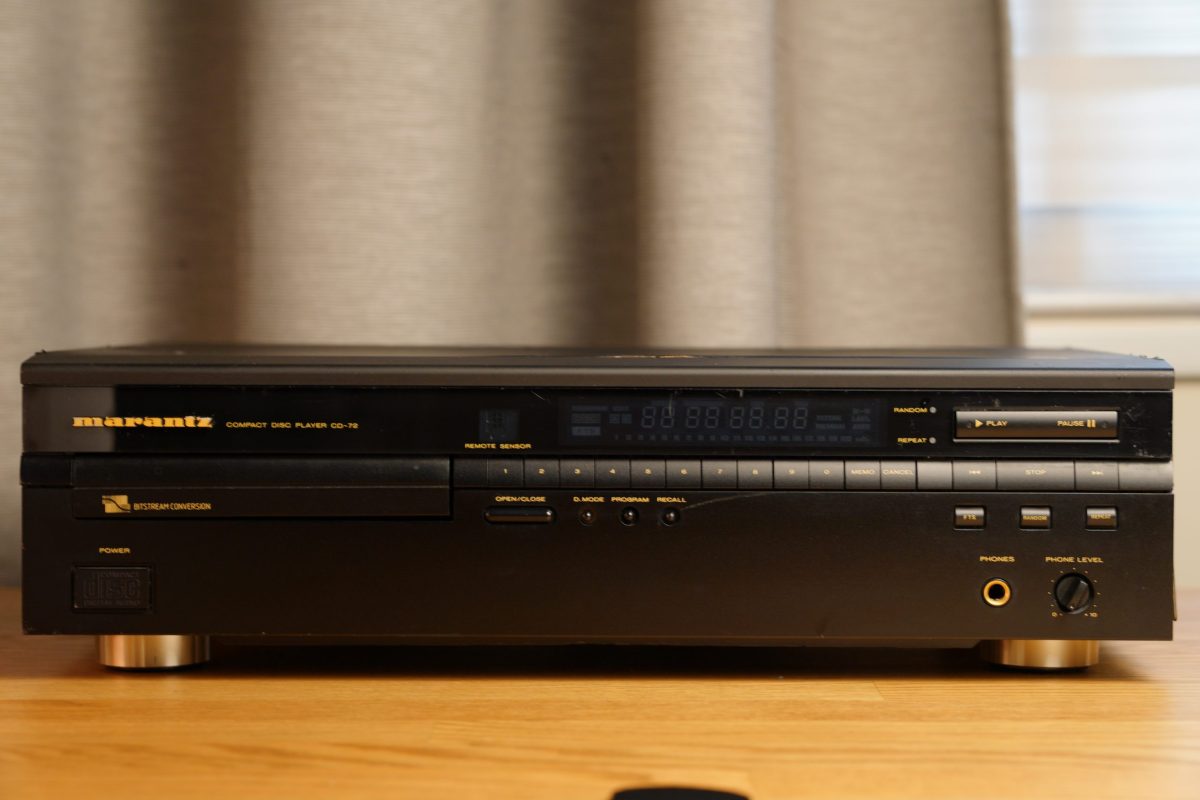

Marantz CD-72 CD Player
RM1,400.00
1 in stock
The Marantz CD72 is the top model in the CDx2 line. This product is from the era where Marantz was owned by Philips, and hence it uses many Philips made components. All of the players in this line were of the same configuration; they used a CDM-4/19 laser mechanism, the TDA8808 / TDA8809 servo chipset, the SAA7310 decoder IC, the SM5840 digital filter IC and the SAA7350 noise shaper and DAC IC. Unlike previous digital filter ICs used by Marantz, the SM5840 does not output a S/P DIF signal. A separate IC, the PCF3523, is used to format the digital output in this player.
| Specification | Details |
|---|---|
| Frequency Characteristic | 2 Hz to 20 kHz ± 0.1 dB |
| S/N Ratio (1 kHz) | 110 dB |
| Dynamic Range | 98 dB or more |
| Total Harmonic Distortion Factor | 0.0015% (1 kHz) |

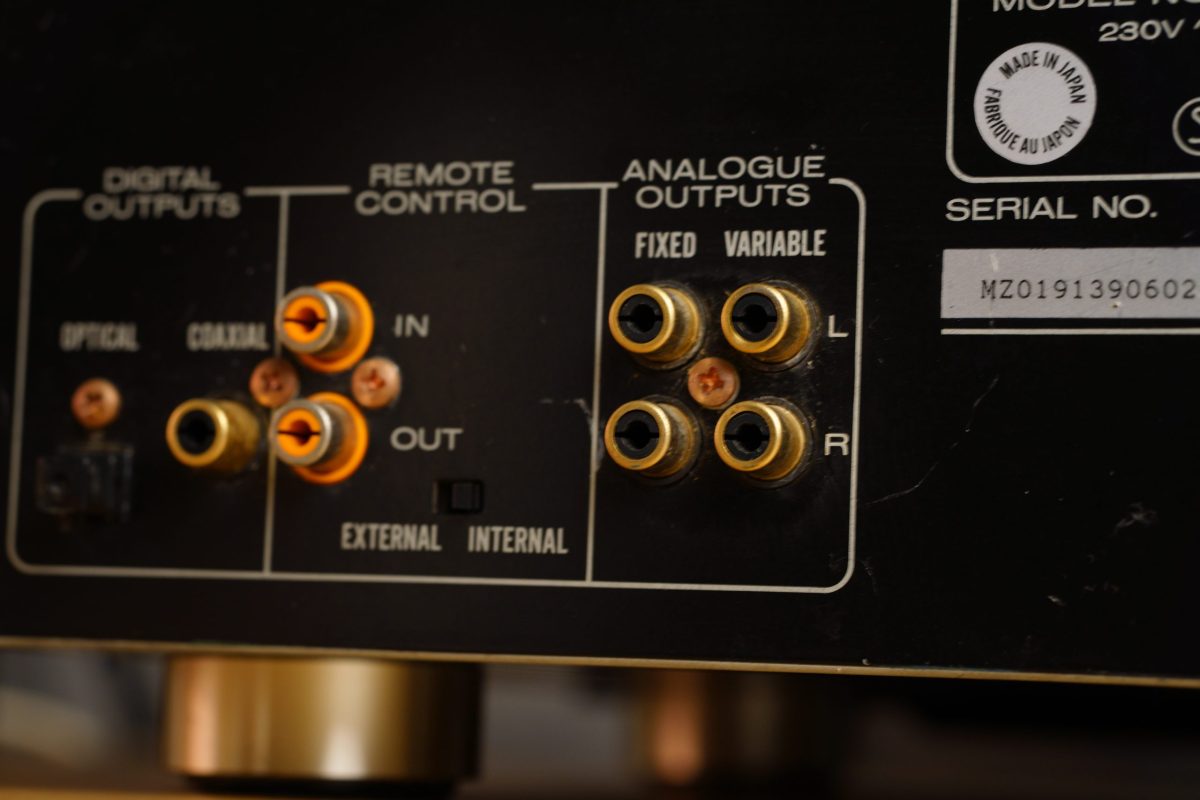

| Analog Output | Fixed: 2 Vrms Variable: 4 Vrms |
| Digital Output | Coaxial: 0.6Vp-p Optical: -19dBm |
| Power Consumption | 12W (Electrical Appliance and Material Control Law) |
| Maximum External Dimensions | Width 454mm x Height 121mm x Depth 297mm |
| Weight | 8.5kg |
