High End Accuphase M-100 Power Amplifier 500w 8 ohms Balanced XLR VU Power Meter Japan Audiophile Gold Standard

Introduced in 1981, the Accuphase M-100 remains one of the most significant achievements in solid-state amplification history. These monoblock amplifiers were designed with a “cost-no-object” philosophy, intended to provide limitless power and surgical precision for the world’s most demanding loudspeakers.

Technical Specifications & Performance

The M-100 is defined by its massive power reserves and a sophisticated dual-display system that provides both digital and analog feedback.

• Output Power: * 500 Watts into 8 Ohms

  • 800 Watts into 4 Ohms

  • 1,200 Watts into 2 Ohms

• Circuitry: A massive power supply utilizing a high-efficiency toroidal transformer and 22 wide-band high-power transistors in a parallel push-pull configuration.

• Frequency Response: 20 Hz to 20,000 Hz (+0, -0.2 dB) at rated output; 0.5 Hz to 250,000 Hz at 1 Watt.

• Damping Factor: 300 (8-ohm load, 50 Hz).

• Signal-to-Noise Ratio: 120 dB (at rated output).

• Total Weight: Approximately 41.5 kg (91.5 lbs) per unit.



Research & Design Insights

The M-100 was Accuphase’s answer to the high-end American “Super Amps” of the early 80s.

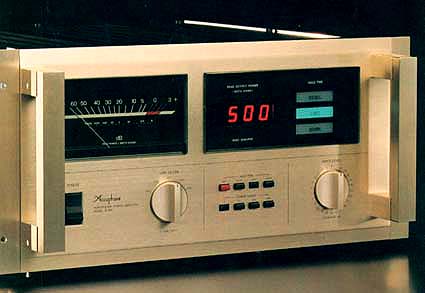

1. Dual Output Meters: The front panel is iconic for its simultaneous display of a large analog needle (logarithmic scale) and a high-speed digital peak readout. This allowed audiophiles to monitor both average musical levels and instantaneous peaks that could cause clipping.

2. Stability Under Load: Unlike many amplifiers of its era, the M-100 was designed for constant voltage drive. It remains stable even when driving difficult electrostatic speakers or low-impedance ribbon drivers that dip toward 2 Ohms.

3. Heat Management: To sustain its massive Class AB power, the unit features substantial internal heat-sinking and a robust chassis built to military-grade tolerances.

Audiophile Reviews & Legacy

Professional reviews from the 1980s to today consistently highlight three major traits:

• “Effortless Authority”: Critics often note that the M-100 never sounds “strained.” Even at thunderous volumes, the soundstage remains locked in place with zero compression.

• “Tube-Like Warmth with Transistor Grip”: Professional users describe the M-100 as having a slightly “sweet” or organic mid-range—reminiscent of high-quality vacuum tubes—but with the iron-fisted bass control and “slam” only a massive solid-state power supply can provide.

• “The Last Amp You’ll Buy”: Due to the over-engineered build quality (using gold-plated signal paths and premium capacitors), these units are legendary for their longevity. A well-maintained or serviced M-100 today still competes with modern high-end monoblocks costing five figures.
