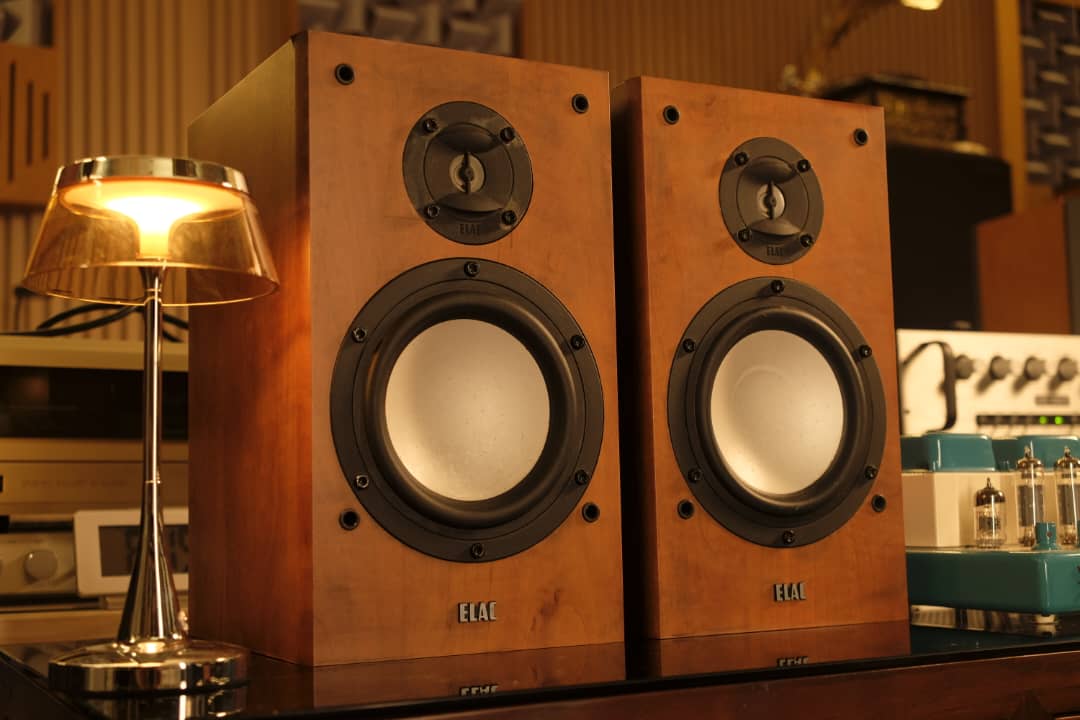

Elac Germany 103 Bookshelf speaker 5.5″ woofer

General Specifications

• Type: 2-Way Passive Bookshelf Loudspeaker

• Enclosure Type: Rear-ported Bass Reflex

• Country of Origin: Made in Germany

Audio & Performance

• Nominal / Peak Power Handling: 50 W (RMS) / 70 W (Peak)

• Recommended Amplifier Power: 20 W – 100 W per channel

• Frequency Response: 46 Hz – 25,000 Hz

• Sensitivity (SPL): 87 dB (at 2.83 V / 1 m)

• Nominal Impedance: 4 – 8 Ohms

• Crossover Frequency: 2,600 Hz (2.6 kHz)

Drivers & Construction

• Low/Mid Driver (Woofer): 1 x 140 mm (5.5″) cone driver

• High Driver (Tweeter): 1 x 25 mm (1″) dome tweeter

• Cabinet Material: High-density MDF

Dimensions & Weight

• Dimensions (H x W x D): 310 mm x 185 mm x 220 mm (12.2″ x 7.3″ x 8.7″)

• Weight: 4.9 kg (10.8 lbs) per speaker
