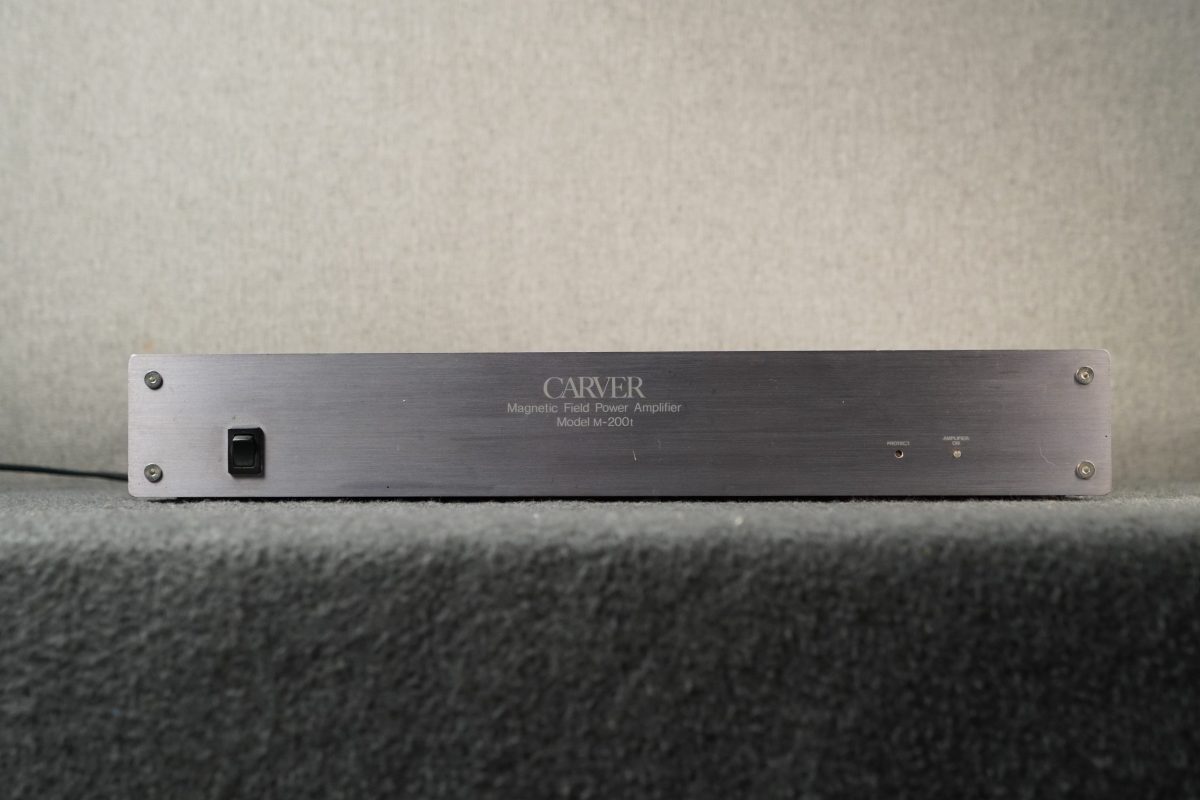

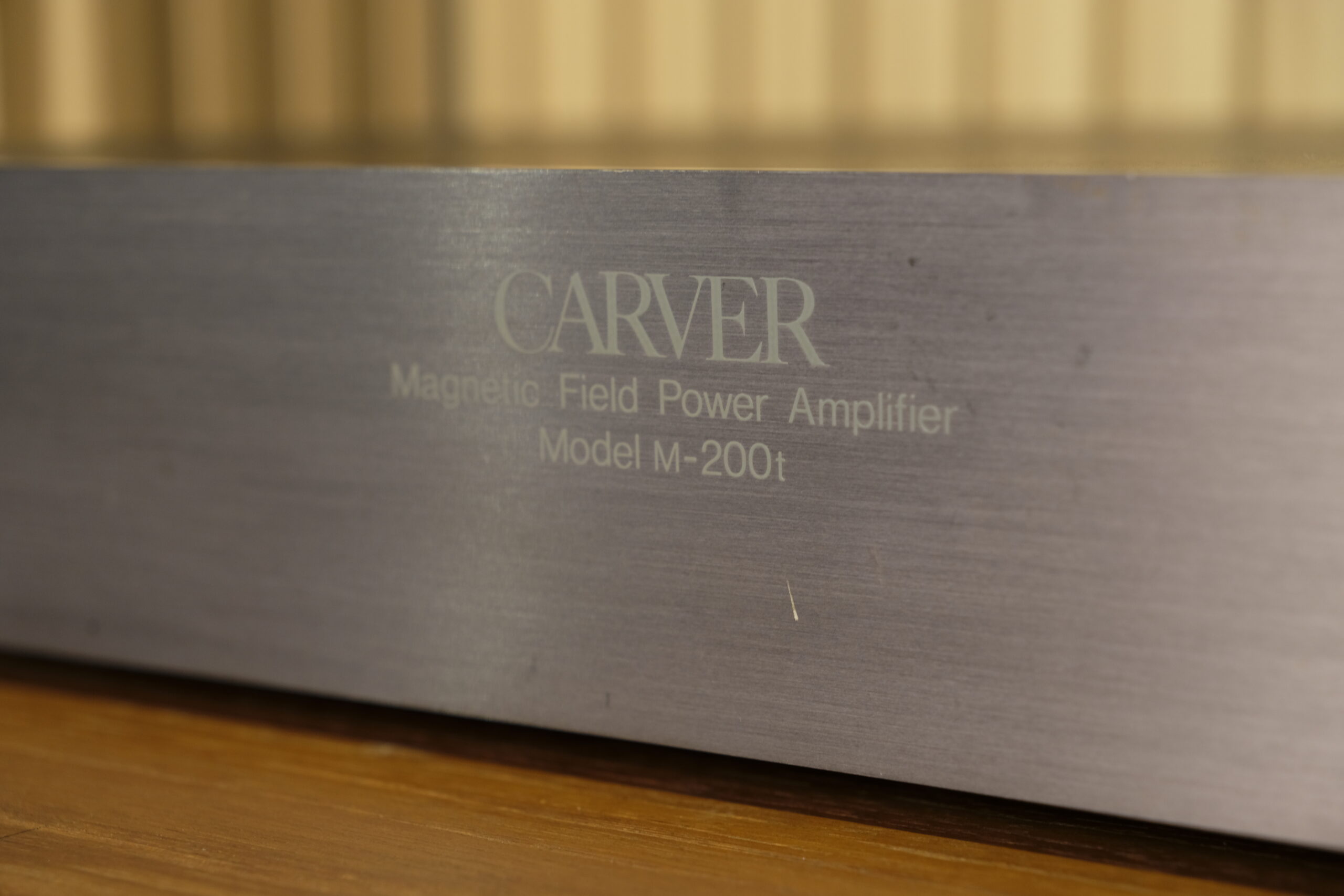

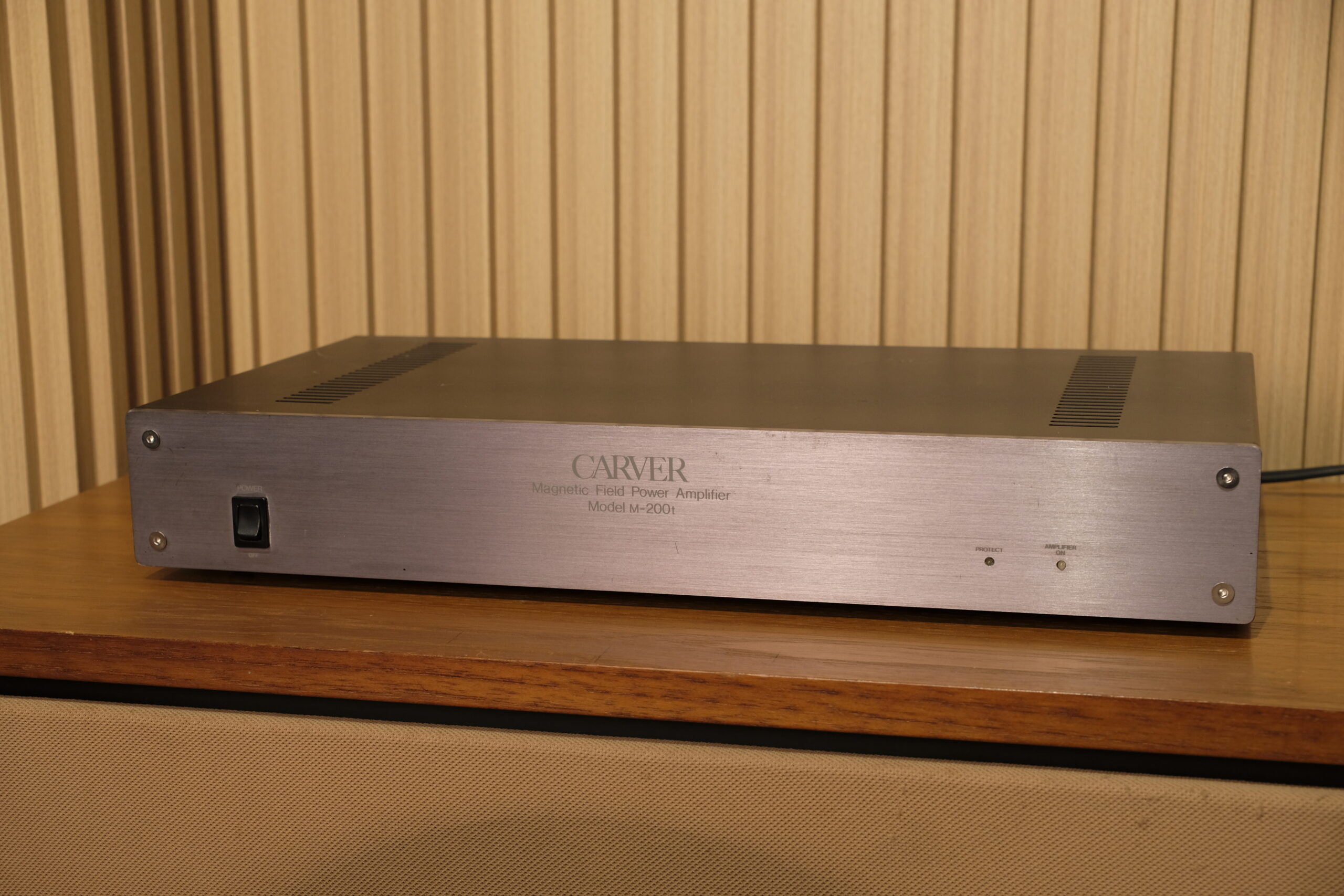

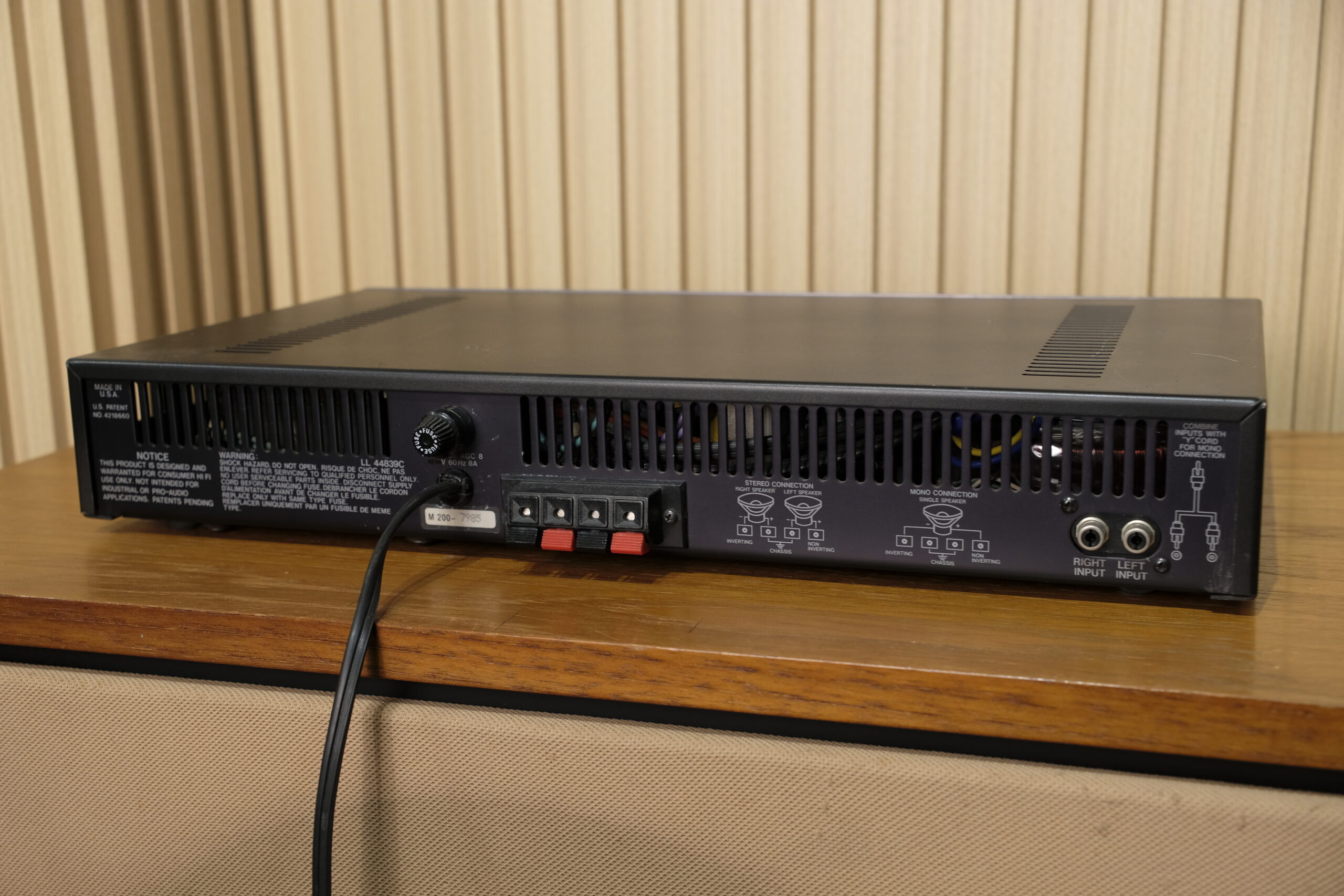

Carver Magnetic Field 120W High Power Amplifier M-200t

The Carver M-200t is a vintage powerhouse known for its “Magnetic Field” technology, which allows it to deliver high power output in a chassis significantly smaller and cooler than traditional Class A/B amplifiers of its era. It was specifically designed to handle the high dynamic range of digital audio (CDs) that often caused lesser amplifiers to clip and distort.

The Carver M-200t is a masterclass in efficient engineering. Utilizing Bob Carver’s legendary “Magnetic Field” technology, it delivers high-current power from a slim, cool-running chassis that defies traditional amplifier physics.

Key Specifications

Power Output (8Ω) | 120 Watts per channel (Stereo) |

Bridged Mono Power** | 350 Watts |

THD** | 0.15% (at rated power) |

Frequency Response** | 1Hz to 100kHz (+0, -3dB) |

S/N Ratio** | >100dB (IHF A-Weighted) |

Slew Rate** | >100 V/µs |

Input Impedance** | 100k ohms |

Dimensions (HxWxD)** | 2.55″ x 17.32″ x 9.20″ |

Weight** | Approx. 10.25 lbs |

Magnetic Field Technology:

Bob Carver’s signature design allows for massive power reserves on demand. By eliminating the need for heavy, heat-generating transformers, this amp stays efficient and lightweight without sacrificing impact.

Built for Digital Audio:

Designed to handle the “exploding power” and sudden transients of digital recordings. It prevents the speaker-damaging clipping that often occurs when lower-powered units try to keep up with high-dynamic-range tracks.

Comprehensive Protection:

Includes sophisticated monitoring circuitry to guard against:

* Short circuits

* Voice coil overheating

* DC offset

* Thermal shutdown

The Performance:

The M-200t is best described as effortless. While 120W per channel might sound modest, its high slew rate and immense headroom give it a punchy, fast character. It excels at “completing the waveform,” ensuring musical peaks aren’t “snapped off” by clipping. The result is a soundstage that feels open and detailed rather than compressed.
