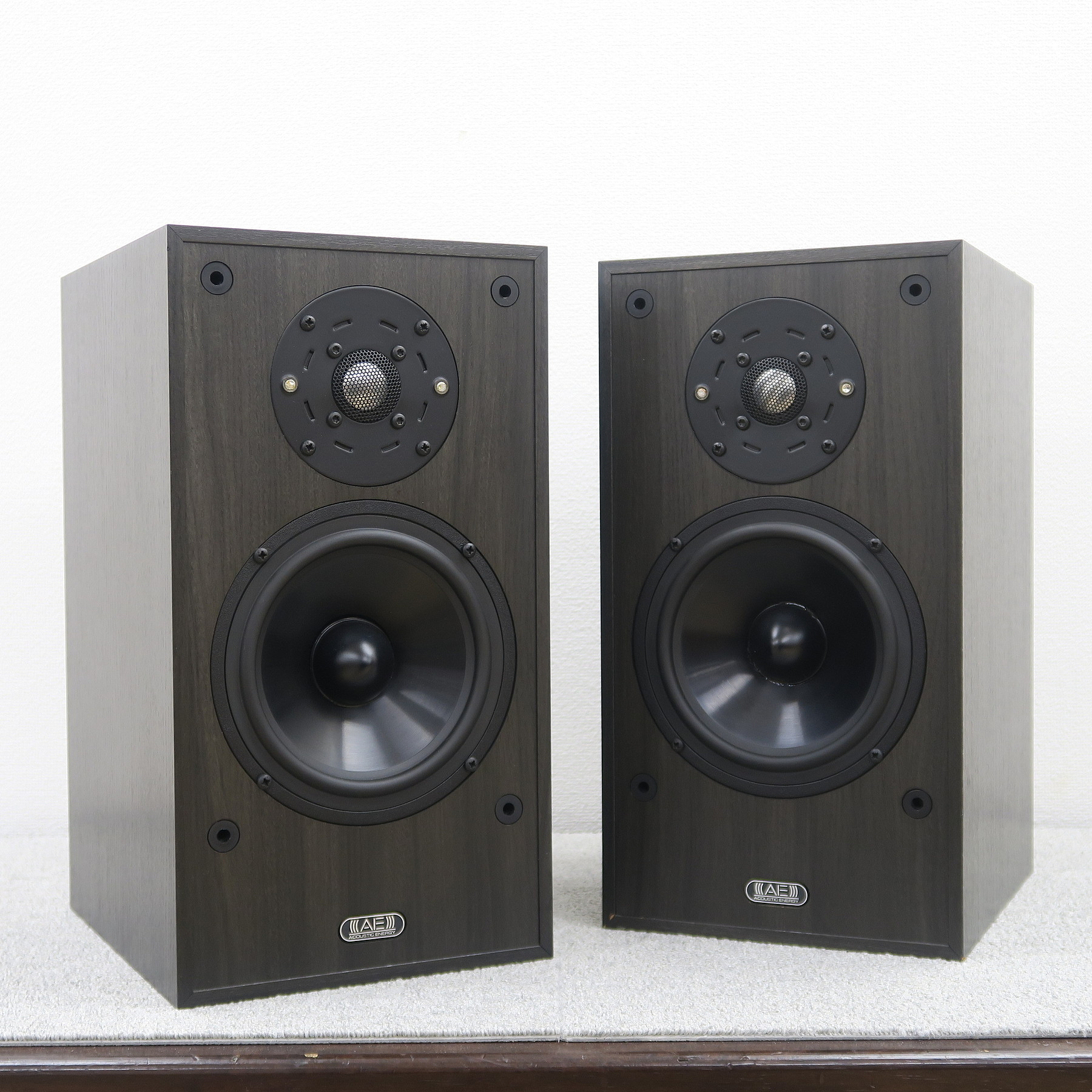

Acoustic Energy Aegis AE Model One Bookshelf UK

The Aegis Model 1 is a compact, elegant two-way monitor loudspeaker built with serious engineering despite its modest size. It uses a rigid alloy-cone mid/bass driver and a silk-dome tweeter to deliver clear, transparent sound with strong detail and musical expressiveness. The cabinet is solidly braced, and a tuned bass-reflex port helps extend low frequencies cleanly. Designed for critical listening, it offers a well-balanced tonal character, vivid imaging, and a surprising dynamic range for its class.

Key Specifications & Performance

• Metal-cone mid/woofer (≈ 130 mm) with bonded voice coil and heat-dissipating alloy cone

• Silk-dome tweeter, ferrofluid-cooled and magnetically shielded

• Crossover around 2.8 kHz (2nd / 3rd order)

• Sensitivity: ~ 90 dB / 1 W / 1 m

• Impedance: 8 Ω nominal

• Frequency response: ~ 50 Hz to 20 kHz (±3 dB)

• Power handling: 20 W – 120 W

• Cabinet: MDF with internal bracing; front baffle 25 mm, enclosure 15 mm panels

• Port type: Flared bass-reflex for low-turbulence flow

• Terminals: Gold-plated binding posts

• Dimensions (W × H × D): ~ 192 × 362 × 235 mm

• Weight: ~ 7 kg each

Why It Impresses

• The metal-cone driver offers rigidity and piston-like behavior, improving clarity and minimizing coloration.

• The silk-dome tweeter contributes smooth, natural treble without harshness.

• A solid crossover design with quality components ensures seamless integration between drivers.

• The ported design and carefully braced cabinet allow surprisingly clean bass for a speaker of its size.

• Excellent imaging and soundstage for close listening setups.

• Versatile enough to perform well with both solid-state and tube amplifiers, making it a favorite among discerning vintage audio fans.
